The Birth of the Jacquard Machine: Punch Cards in the 19th Century

The original purpose of the Jacquard machine was to automate the process of creating complex patterns in weaving fabric. Creating intricate patterns in textiles required manual control of the loom by skilled artisans before the invention of the jacquard. The process of raising or lowering each thread by hand was slow and laborious. Jacquard’s punch-card method revolutionized all this.

Jacquard used a series of punched cards, each card having holes that represent a row of woven patterns. These were placed in jacquard machines, holes allowing hooks and needles to raise or lower the finest threads. Thus complex patterns were created automatically. This method was an early type of programmable automation, in which the pattern is “coded” into a punch card, and the loom validates the instructions, without human intervention.

This discovery was a major breakthrough for the textile industry. This made it possible to make complex designs quickly and with fewer workers. The Jacquard machine was widely adopted, especially in the silk weaving process, and it greatly influenced the development of the textile industry in the 19th century.

Mechanical Punch-Card Loom: Completing the Process

After the first invention of the jacquard, furthermore improvements and adaptations were made to the jacquard machine. The core mechanism of the punch-card system remained mostly the same, in addition new inventions were made to increase the efficiency and size of the products.

During the 19th century, several improvements were made to the Jacquard machine, such as:

– Increasing the number of hooks: Initially Jacquard looms had a small number of hooks that could handle individual threads. Following versions increased this number, allowing for more complex patterns and more thread evaluation.

– Improving the punch-card mechanism: Improvements were made to the punch-card mechanism from time to time, thereby increasing the speed and accuracy of the machine. More cards can be stacked together, apart from this making longer and more complex patterns possible.

– Integration with Power Looms: Jacquard machines were later integrated with power looms, which were driven by steam engines and later by electric motors. This facilitated faster production speeds and greater mechanization of textile manufacturing.

By the middle of the 19th century, the jacquard machine had become standard equipment in textile factories, especially for high-quality fabrics that required complex patterns.

The Shift to Electronics: The End of Punch-Cards

The change from the mechanical punch-card system to the electronic jacquard loom occurred mainly in the 20th century, as electronic and computer technology emerged. The shift to electronics meant greater efficiency, greater design flexibility, and better judging edges.

In the 1950s and 1960s, the rise of electronic systems in manufacturing meant that the traditional punch-card system was becoming obsolete. Punch cards became large when folded and bulky with limited storage capacity. Electronics offered a more convenient and efficient solution.

Arrival of the Electronic Jacquard Loom

The shift from punch-card systems to electronic jacquard looms began in the 1960s and continued vigorously in the 1970s and 1980s. Electronic jacquard looms use computer-controlled systems, which control mechanisms rather than punch-card mechanisms. The details of this change are as follows:

– Introduction to Computer Control: The first electronic jacquard looms replaced the punch-card system with computers. Now the computer sends the necessary instructions to shape the pattern of the method. Hence, it became possible to control the weaving process more precisely and eliminate the need for physical cards.

– Increased pattern complexity: Computers made it easier to store and manipulate more complex patterns. It was now possible for designers to control the machine to create larger and more detailed patterns. These patterns could be stored digitally, additionally allowing rapid design changes and customization.

– Faster production and greater flexibility: Computer-controlled Jacquard looms significantly increased production speed. Compared to mechanical looms, which were limited by the physical process of moving punch cards, electronic looms can execute instructions quickly and accurately. Additionally, these looms made it easy to change designs. The obligation to replace punch cards or reconfigure mechanical systems can now be avoided.

-Integration with CAD software: One of the most important developments in Jacquard technology today is its integration with computer-aided design (CAD) software. Designers now create digital patterns using CAD programs, which are then directly translated into loom instructions. This gives the machine endless possibilities for more creative designs and simplifies the workflow from concept to final product.

Modern Electronic Jacquard Looms: Advanced Technology

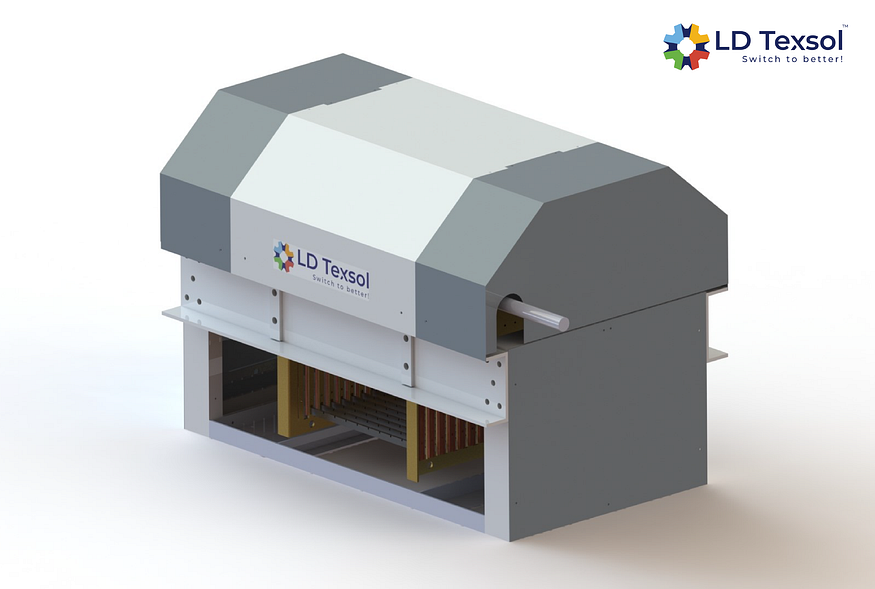

Today’s jacquard looms are highly advanced machines that combine electronics, robotics, and software, which can produce small and large, complex styles, colorful fabrics, and even fabrics with sensors or electronics in textile production.

Some of the key features of modern jacquard looms include:

Real-time data monitoring: Modern Jacquard looms have sensors embedded in them, which collect real-time data on the weaving process. These sensors help detect the tension of threads, the speed of the loom, and any defects in the fabric. This gives room for immediate improvements and ensures consistent quality throughout the manufacturing process.

High-performance speed and accuracy: Through the latest technology, today’s jacquard looms work faster, more reliably, and with greater precision. Some electronic Jacquard looms can take off thousands of picks (rows of thread) per minute, which makes them ideal for high-volume production

Integration with Smart Textiles: One of the most exciting developments in jacquard weaving is the part it plays in the growing field of smart textiles. Modern Jacquard looms can weave conductive fibers or embed sensors directly into fabrics. This has opened up new opportunities to create fabrics that respond to environmental changes or monitor health metrics.

Sustainability and Efficiency: Electronic jacquard looms also contribute to more sustainable textile production. With more precise control over the weaving process, manufacturers reduce material wastage, and they can quickly change designs, reducing the need for less raw material. Additionally, modern looms integrate energy-efficient technologies that help reduce energy consumption in textile mills.

Customization and Personalization: Modern Jacquard looms are coupled with digital technology. Subsequently, it provides a high degree of customization capability. Designers and manufacturers can create small runs of unique, individual fabrics for fashion, interior design, or an industry feel. This flexibility is changing the way textiles are produced and consumed.

Conclusion: Continued Development of the Jacquard Machine
As technology evolves, the jacquard loom will inevitably adapt as well, in addition, to opening up new possibilities in the textile industry and beyond. What was a punchcard-controlled mechanical loom in the 19th century, today has become an advanced technology that combines design, automation, and electronics, reshaping the way we think about fabric production in the 21st century.

At LD Texsol, we are proud to be a leading manufacturer and exporter based in Surat, India. Our advanced technology, commitment to quality, and specialization in textile automation help drive the industry forward. If you are looking for advanced jacquard weaving solutions, contact us today. Let’s find out how we can support your business and take your fabric production forward.
